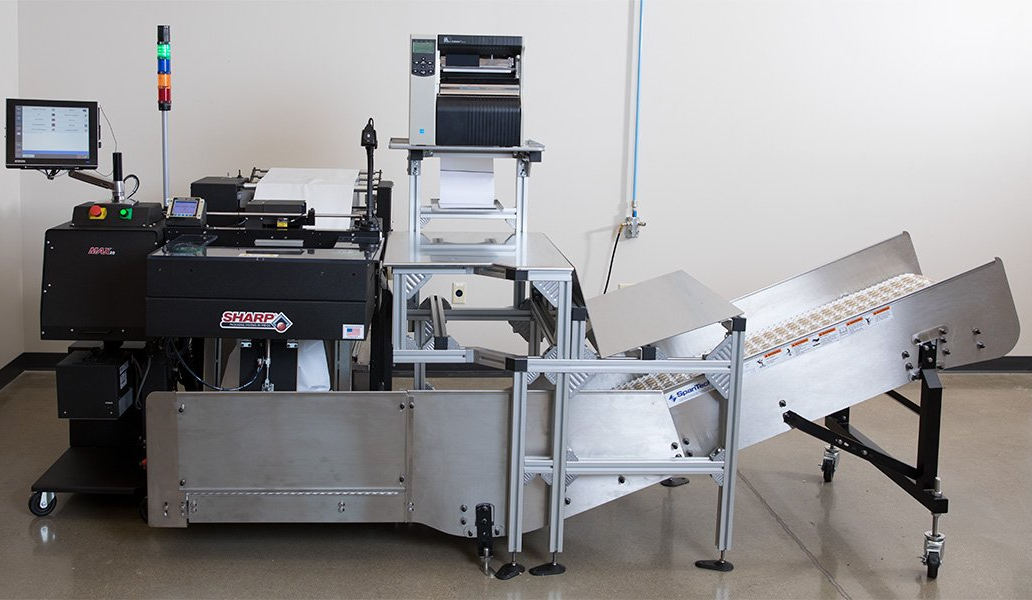

Sharp® Max 20 Continuous Bagging System

Faster Printing

• At least 50% faster than printers used by other manufacturers,

increasing throughput dramatically

• Set moveable printing head to precise positions, based on

package size, to print bags in order, eliminating queuing and

reducing scrap and material cost

• Reduce thermal ribbon usage as much as 90% with reduced

spacing between impressions, printing with alternative

registrations, and adjusting impression placements to increase

ribbon usage

Cutting Edge Technology

• Touchscreen is a 12.1" TFT (thin film transistor) technology,

including a PC with Windows®

• Run Windows labeling software, create labels on the PC, save,

then add it to a particular job, so the label format is saved as part

of the job

• Includes a high speed counter, pulse train output and network

capabilities

Versatility in Loading

• Entire machine moves up or down, adjusting to a wide range

of heights

• 90˚ rotation capabilities for horizontal loading for heavy or

stuffable products

More Efficient Operation

• Heavy duty drive fingers don’t bend even with tugging at bags, so

no need to realign

• The proximity sensor is inside the jaw, protecting the magnet field

and improving operation in dirty environments

• The constantly heated sealing mechanism offers a longer life than

impulse mechanisms

• Controls for the printer are viewed directly on the bagger HMI, so

it’s not necessary to manage multiple monitors or displays for the

bagger and printing system

• Control, recall stored labels or even create labels directly on the

single HMI

Access Data Anywhere

• HMI, printer, and PLC can be networked, so they can be accessed

at any time from almost anywhere

• Use remote label printing, production reporting, and SCADA

(supervisory control and data acquisition) control

Easy Maintenance

• Off-the-shelf, nonproprietary parts

• Color touchscreen display provides troubleshooting guidance with

exploded view drawings, manufacturer and part numbers, and

html help files with hyperlinks to explain any term

Sharp Max 20 Bagger (PDF)

Dimensions:

52.6" wide x 49.8" long

With (I) Imprinter

39.8" to 45.9" high

Weight: 348 lb / 158 kg

Air: 80 psi, 5 scfm, 5.5 bar

Rate: 50 bags/min1

Bag Width Range: 2" – 20" / 5 cm – 50.8 cm

Bag Length Range: 3.5" – 32" / 6.5 cm – 81 cm

Film Gauge Range: 1 mil – 4 mil / 25 microns 100 microns

Roll Diameter: 10", 14", or fan folded in box2

Printing Cycle Rates: (I) Imprinter end of cycle: 50 bags/min

Printing Capabilities

Full downloadable font support to Windows® TrueType® (including multiple

languages and Unicode support); Fixed, variable and merged text fields; Flexible

date/time formats; Flexible shift code formats; Auto best before date calculations

and concession management; Auto incrementing/decrementing text, counters

and bar codes; Multiple graphic formats supported (up to maximum print area);

Link fields to databases; Scalable text and text blocks.

Print Method: Thermal transfer, directly onto surface of bag

Print Speeds: 20"/second

Print Resolution: 300 dpi (12 dot/mm)

Print Area (max.): 4.2" (107 mm) wide x 7.9" (200 mm) long

Bar codes: EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128,

Code 128, ITF, RSS (including 2D composite codes);

others available upon request

Operator Interface: Built into bagger HMI, WYSIWYG print preview,

Full on-board diagnostics

Nominal Ribbon Waste

Between Successive Prints: 0.002" (0.5 mm)

Ribbon Saving Features :Radial ribbon save, interleaved ribbon save,

intermittent ribbon save

Power Supply 90 – 264V

Air Supply: 6 Bar. 90 psi, 1.0ml/cycle (max), supplied by bagger
