Model 5850 SD-U FF Automatic Uniform Side Drive Case Sealer

For simple and reliable case sealing!

The Magnum 5850 SD-U FF is an adjustable side drive case sealer with flap folders designed to automatically fold the minor and major flaps of the boxes down and provide accurate and consistent tape application to uniform cases.


The Magnum 5850 SD-U FF:


• Automatically folds flaps for uniform cases

• Two 2" tape heads with easy tape threading

• Adjustable flap folding arms

• Adjustable legs from 22"–32" with locking casters

• 4 safety gates and switches

• Options available: infeed and exit conveyors.

Features

Automatic Flap Folders


The Magnum 5850 SD-U FF comes

standard with adjustable flap folding

arms, front flap plow, and rear flap

kicker that automatically fold the top

major and minor flaps of uniform

cases. The automatic design makes for

increased productivity with no operator

required.


Locking Swivel Casters


Highlight’s heavy duty locking casters

allow the Magnum 4500 SD-R to be

easily moved around a facility to a work

area, or moved aside when not in use


Tape Head


The Magnum 4500 SD-R is equipped

with a pair of Magnum 200 Series tape

heads which are loaded with features to

give you the most reliable and flexible

tape heads in the industry.


Specifications

Magnum 5850 SD-U FF Manual


Type:    Side Belt Drive Uniform with Flap Folders


Machine Operating Rate:    Up to 26 boxes per minute


Case Belt Speed:    75 feet per minute


Tape Head: Magnum 200 Series

2” Tape Heads Standard, 3” Optional


Working Height:    Adjustable 27” to 35”

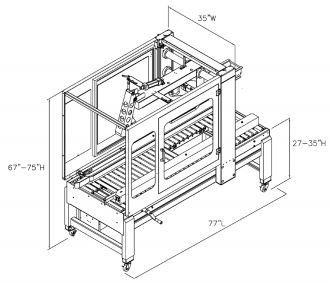

Machine Dimensions:   77” L, 35” W, 67” H

Standard


Case Size Capacity:    5” to 24” L, 5” to 20” W,

5”-20” H


Pneumatic:  80 psi, 2 cfm


Electrical: 120 V, 60Hz, 10 Amp


Machine Weight: 750 Pounds
