PP1606-20

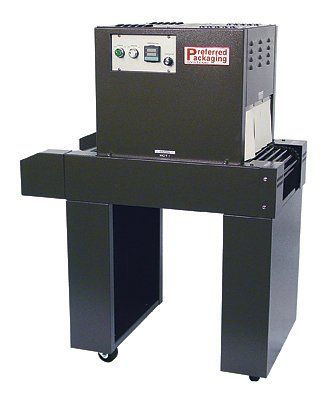

PP1606-20 Heat Shrink Tunnel

Entry level machines ideal for multiple applications.

The Model PP1606-20 Shrink Tunnel (16”W x 6”H x 20”L chamber size) is a General Purpose Entry Level Heat Shrink Tunnel which

can be used for a wide variety of applications such as laying bottles down and using full length PVC shrink sleeves, shrinking preform shrink bands over containers, using regular cut shrink bands, can be used as a curing tunnel or a drying tunnel. This tunnel can

also be connected to an L’Sealer and used to shrink wrap packages. Features discharge slide on exit end of shrink tunnel to easily

move completed packages away from shrink tunnel conveyor.


This tunnel features a fully re-circulating air chamber with air flow coming from all four sides to provide the best shrink results and

a live roller rod conveyor. This feature is normally only found on much more expensive tunnels. AC variable speed drive with

digital temperature control 0-400 degrees. Available in 110 or 220 volt.

Standard Features Include:


• Fully Re-Circulating Shrink Tunnel

• 4 Direction Air Flow for Best Possible Shrink Results

• State of the Art AC Variable Speed Conveyor 0-30FPM (9M/Min)

• Live Roller Rod Conveyor Provides Best Shrink Results

• Automatic Cool Down and Shut Off Extends Heater Life

• Solid State Digital Temperature Control

• Hi Density Rollers - Close Roller Spacing 1/2” Gap Between Rollers

• Locking Casters

• 12ft Power Cord

• 2 Year Warranty


Available Options:

• #304 Stainless Steel Frame Construction

• 220 Volt Power

• 8” High Tunnel Opening

• Teflon Mesh Belt Kit

Power:


115 Volt, 20 Amps


Weight:



220 lbs


Machine Dimensions:


35.5”L x 22” W x 48.5”H


Chamber Dimensions:


20”L x 16”W x 6”H


Warranty:          2 Year Warranty
