PP3612-60

PP3612-60: Shrink Tunnel

High Capacity Production Shrink Tunnel!

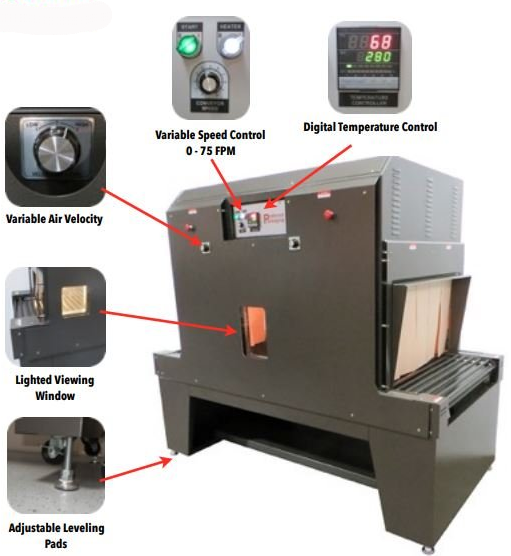

The PP3612-60 Tunnel is a great general purpose shrink tunnel that can be used for a

wide variety of applications. Can be used with shrink bands, neck bands, full body sleeves,

used with shrink film, used as drying or curing tunnel etc.


Standard Features Include:


• Fully Re-Circulating Air Chamber

• Live Roller Rod Conveyor

• Digital Temperature Control 0-400°

• Adjustable Air Velocity Control

• State-of-the-Art AC Variable Speed Drive

0-75 FPM

• Chromed Conveyor Rollers and Shaft (No

Rust)

• Automatic Tunnel Cool Down with Shut

Off

• 1HP Blower Motor

• Sealed Bearings on Drive and Idler Shafts

• Chamber Size 36”W x 12”H x 60”L

• Quietest Tunnel on the Market

• Heats up to 300° F in less than 15

minutes

• Thermal Overload Protection on All

Motors

• Locking Casters with Leveling Screws

• Anti-Jam Safety Features on Conveyor

• 15 KW Heater Bank


Available Options:


• 16”, 20”, 24” or 28” Tunnel Height

• Close Roller Spacing 1/2” Gap

• Teflon Mesh Belt

• Stainless Steel Metal Mesh Belt

Power:


220 Volt,3 Phase, 50 Amps


Weight:



800 lbs


Chamber Dimensions:


60”L x 36” W x 12”H


Machine Dimensions:


60”L x 36”W x 12”H


Speed:


0-75 FPM


Warranty:          2 Year Warranty
