Sharp SX

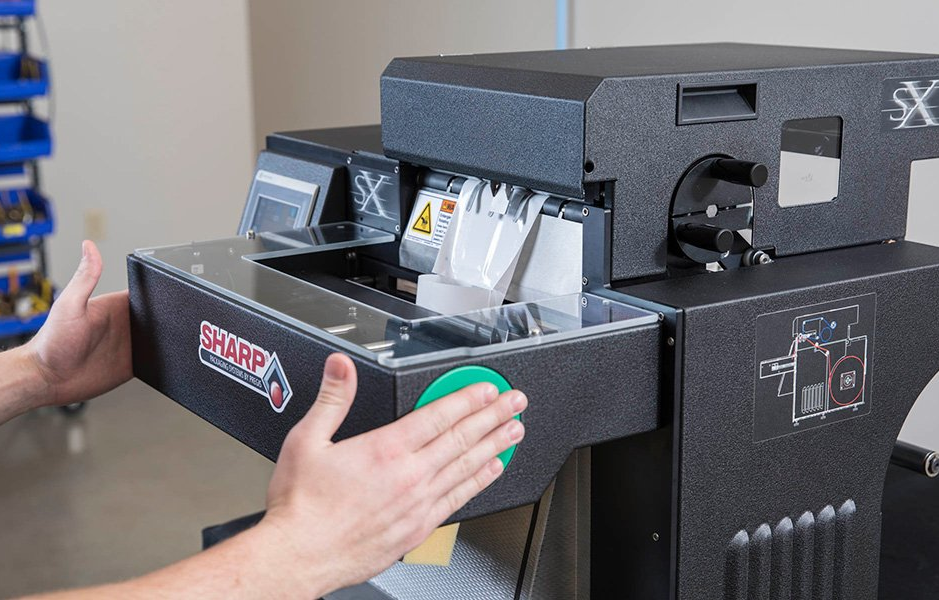

Sharp® SX™ Continuous Bagging System

This tabletop bagging machine that sets up in seconds, taking the complexity out of hand loading operations!

When space is an issue, the SX™ machine is the ideal choice for automating your bagging operations. The all-electric design is easy to use and plugs into any standard outlet for ultimate convenience. With efficient printing, touchscreen operation, and fewer parts for less maintenance, the SX is the perfect, turnkey solution for any operation.


• Runs bags 2" to 11" wide and 4" to 32" long

• Technology advancements include 4.3" wide color touchscreen with AllenBradley Micro850 PLC

More Efficient Printing

• Prints unique, variable information on the

first bag out

• Can print long and short production runs

for a variety of projects

• 4" wide print head for a larger print area

• Ribbon changes are up to 50% faster

• Electronic ribbon out sensor prevents

wasted ribbon. The viewing window

allows you to see the amount of ribbon

remaining on the roll.


Easier to Use

• All electric design—just plug in and use

the SX™ anywhere

• Optional adjustable load shelf for easy

loading for bulky or heavy products

• Cross flow fan channels high volume,

low pressure ducted air for precise bag

opening—no compressed air required

• Auto-Rol™ tension system maintains

consistent web flow, eliminates breakage

• Clamshell design makes it easier to

thread the bags

• Bag changes are fast with

touchscreen inputs


Maintenance Is Simple

• Off-the-shelf parts result in significant

savings on replacement parts

• Fewer moving parts for less maintenance

• Plug and play wired components for easy

changing and ordering

• Teflon tape is easier and less expensive

to replace

• Self diagnostics identify and correct

problems quickly

• On-board PLC for greater reliability in

machine function

SX Bagger (PDF)


Dimensions: Width 28" x Height 22" x Depth 29.5"


Weight: 140 lb


Rate: 35 bags/minute


Operating Temperature: 0˚ – 40˚C / 32˚ – 140˚F


Humidity: 10% – 90% RH, Noncondensing


Bag Width Range: 2" – 11" / 5 cm – 28 cm


Bag Length Range: 4" – 32" / 10 cm – 81 cm


Film Gauge Range: 1 mil – 4 mil / 25 microns 100 microns


Roll Diameter: 10"


Printing Capabilities

• Full downloadable font support to Windows® TrueType®, including multiple

languages and Unicode support

• Fixed, variable, and merged text fields

• Flexible date/time formats

• Flexible shift code formats

• Scalable text and text blocks

• Auto best before date calculations and concession management

• Auto incrementing/decrementing text, counters, and bar codes

• Multiple graphic formats supported, up to maximum print area

• Link fields to databases


Print Method: Thermal transfer, directly onto surface of bag


Print Speeds: 12"/second


Print Resolution: 203 dpi (8 dot/mm)


Print Width: 4.094" (104 mm)


Operator Interface: Allen-Bradley 4.3" wide color touchscreen

Allen-Bradley Micro850 PLC


Printer HMI: Standard Datamax MKII


Power Supply: 115 VAC, 200W, 50/60Hz
